ADHESIVE CODEX LUBRICATING

GREASE NSF H1-CERTIFIED FOR AGRO-FOOD INDUSTRIES (IAA)

CODEX QUALITY FOR PHARMACEUTICAL INDUSTRIES

TRANSLUCENT, ODOURLESS, FLAVOURLESS

NO ORGANOLEPTIC EFFECTS

EXCELLENT RESISTANCE TO WATER AND STEAM







DESCRIPTION
An inorganic anti-corrosion gel additive. Viscous grease with excellent adhesive properties, suitable for use on low-speed mechanical components.

Compatible with all metals, thermosetting resins, thermosetting polymers, composites and elastomers.



AREAS OF USE
Plain bearings, hinges.

Power transmissions, roller chains, long-pitch chains, API-type chains, hollow rivet chains, leaf chains, slat band chains, fixed ratio transmissions, gearing.
Conventional geared transmissions, straight gearing, cylindrical gears, worm gears.
Information transmission, cams, tappets.
Guide systems, columns, slide rails.
Pumps, valves, block or gate valves.
Percolators, water heaters, meters, time stamp equipment, measuring equipment, marine equipment, radio navigation equipment, agitators, mixers, mills, presses, centrifuges, sterilisers, packaging machines, agricultural equipment, packers, closing/capping machines, shrink wrappers, press tools.
Any clean lubrication without risk of pollution.
Joint assembly.
Canning plants, bakeries, the manufacture of pastries, biscuits and confectionery,

Delicatessens, dairies, abattoirs, cattle feed,

Industrial ice cream-makers, breweries, mineral water manufacturing facilities,

Grape cultivation and wine-making operations,

Fruit and vegetable shipping companies.



                             Download the data sheet


TYPICAL PHYSICO-CHEMICAL CHARACTERISTICS

PHYSICAL CHARACTERISTICS OF THE GREASE

PROPERTIES

STANDARD OR METHOD

VALUE

UNIT

Appearance

visual

smooth, viscous

nm

Colour

visual   colourless

nm

Apparent density at 25°C (pycnometer)

NF T 30 020

897

kg/m³

NLGI Class

NLGI

National Lubricating Grease Institute

2

Classification

Thickener

-

Organic

-

Solid lubricant content

-

Without

%

Penetrability at 25°C                       Non-worked

Worked, 60 strokes

Worked, 1,000 strokes

Worked, 10,000 strokes

Worked, 100,000 strokes

NF ISO 2137 / ASTM 2176







265-295

265-295

265-295

285-315

290-320



1/10° mm

1/10° mm

1/10° mm

1/10° mm

1/10° mm

Dropping point



Dropping point if greater than 360°C

NF ISO 2176 / ASTM D 566



 ASTM D 2265

Without



Infusible

°C



Impurities

> 25 µm

> 75 µm

> 125 µm

FMTS 791 3005



0

0

0





nb/ml

PHYSICO-CHEMICAL CHARACTERISTICS OF THE BASE OIL

PROPERTIES

STANDARD OR METHOD

VALUE

UNIT

Type of base oil

-

Mineral

-

Kinematic viscosity at 40°C

Kinematic viscosity at 100°C

NF EN ISO 3104

90

70

mm2/s

mm2/s

Acid value (AV)

NF ISO 6618

0.0

mg KOH/l

PERFORMANCE CHARACTERISTICS

PROPERTIES

STANDARD OR METHOD

VALUE

UNIT

Oil separation, 7 days at 40°C (bleeding)

NF T 60 191

0

% of mass

Oil separation 24 hours at 41 kPa (bleeding under pressure)

ASTM D 1742

4

% of mass

Sulphated ashes

NF T 60 144

0.1

% of mass

Copper strip corrosion

ASTM D 4048

1a

Rating

Hoffman oxidation

ASTM D 942

5

psi

Loss by evaporation 22 hours at 121°C

ASTM D 972

6

% of mass



Noack evaporation loss

NF T 60 101

CEC L-40 A-93

ASTM D5800



7



      % of mass

Elastomer swelling

70h at 212°C

ASTM D 4289.83

2.5

Dimensional variation %

Temperature ranges

Continuous

Peak



-

-



-20 +150

-20 +160



°C

°C

Rotation factor

n.dm

150,000

  mm/min-1

4-ball test

Wear scar diameter

Wear load index

ASTM D 2266 / ISO 20 623



0.80

1600



mm

N

TIMKEN Test

ASTM D 2509

20

lbs

EMCOR rust prevention test

Dynamic

Static



NF T 60 135

ISO DP 6294/ ASTM D 1743



0-1

1



Rating

Rating

Resistance to water washout at 80°C

ASTM 1264

8

% of mass

 * not measured or non-measurable



INSTRUCTIONS FOR USE
Shake the aerosol can vertically for a few moments after the ball in the can becomes detached. Spray at a distance of 15 to 25 cm depending on the size of the mechanism to be lubricated.



PRESENTATIONS

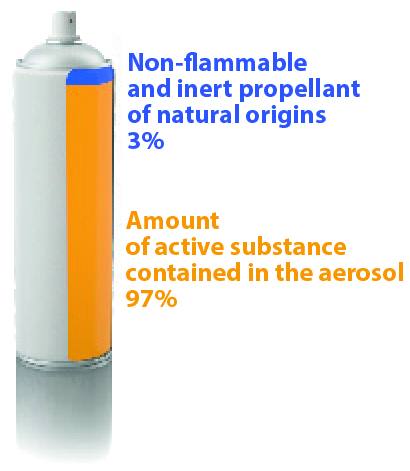

  Aerosol 650 ml

codex grease, food industry, NSF-certified, translucent, odourless, flavourless, without infusible organoleptic effects. compatible with elastomers. codex grease, colourless grease, clean grease, suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease, codex grease, colourless grease, clean grease, grease suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease. technical grease suppliers. industrial grease suppliers. industrial lubricant suppliers. technical grease manufacturers. industrial grease manufacturers, industrial lubricant manufacturers.













            Tin 1 L

codex grease, food industry, NSF-certified, translucent, odourless, flavourless, without infusible organoleptic effects. compatible with elastomers. codex grease, colourless grease, clean grease, suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease, codex grease, colourless grease, clean grease, grease suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease. technical grease suppliers. industrial grease suppliers. industrial lubricant suppliers. technical grease manufacturers. industrial grease manufacturers, industrial lubricant manufacturers.











     Cartridge           430 ml
codex grease, food industry, NSF-certified, translucent, odourless, flavourless, without infusible organoleptic effects. compatible with elastomers. codex grease, colourless grease, clean grease, suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease, codex grease, colourless grease, clean grease, grease suitable for contact with foodstuffs, foodstuff-quality grease, grease aerosol suitable for food contact, grease spray suitable for food contact, grease spray can suitable for food contact, technical grease, industrial grease. technical grease suppliers. industrial grease suppliers. industrial lubricant suppliers. technical grease manufacturers. industrial grease manufacturers, industrial lubricant manufacturers.
